AM/NS Heavy Plates

Building With Smarter Steel. Building For Brighter Future.

Best in class steel plates.

AM/NS India heavy plates are rolled in thicknesses ranging between 6 mm and 150 mm, with a maximum width of 4,900 mm and a maximum length of 25,000 mm. The maximum unit plate weight is 17 MT. The plates cater to various application segments including line pipe, boilers, pressure vessels, wind energy, yellow goods, shipbuilding, and defense.

Visit the AM/NS Heavy Plates Website

Features

Widest Plate Mill

Metallurgical Process

TMCP-ADCO/DQ

Customized Plate

Features

< Prev Next >

Applications

Best in class. Best in class. Best in class. Best in class.

Product Specifications

WORLD CLASS FACILITIES

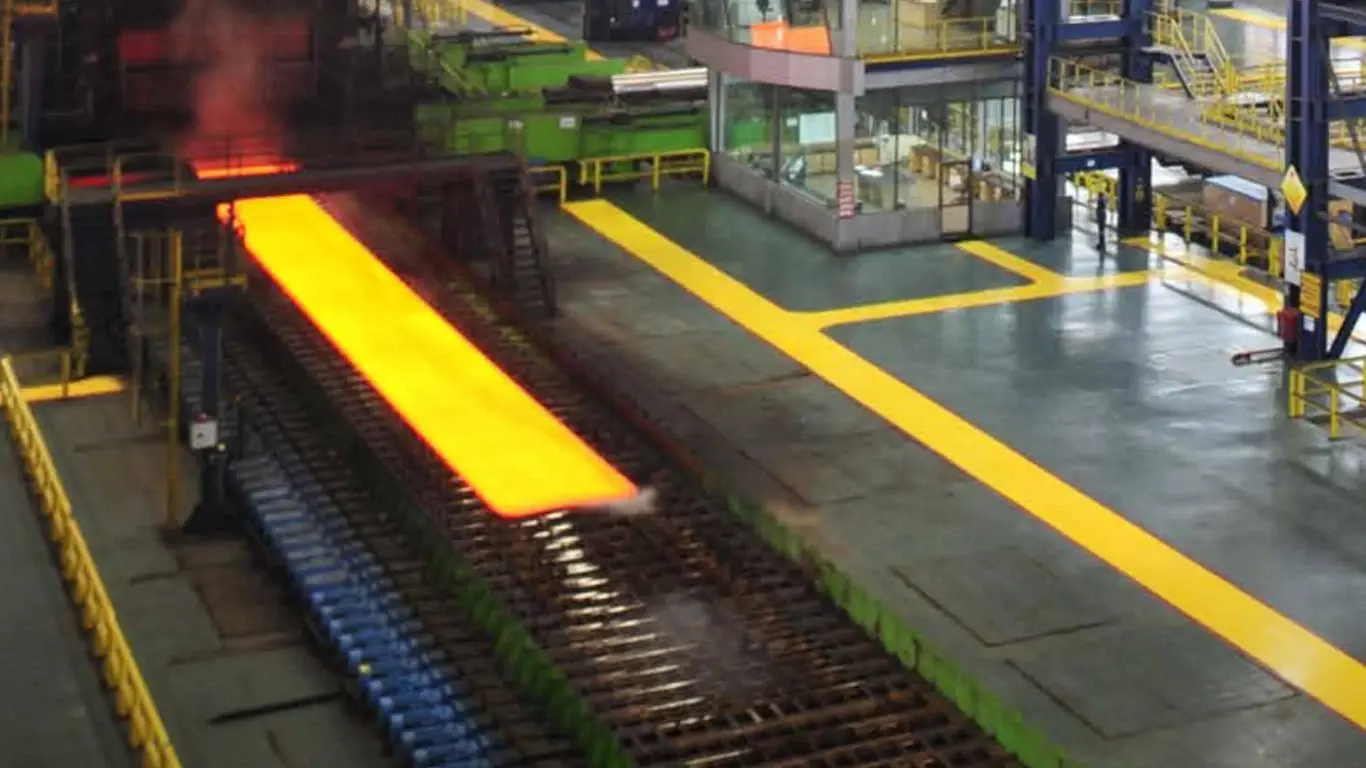

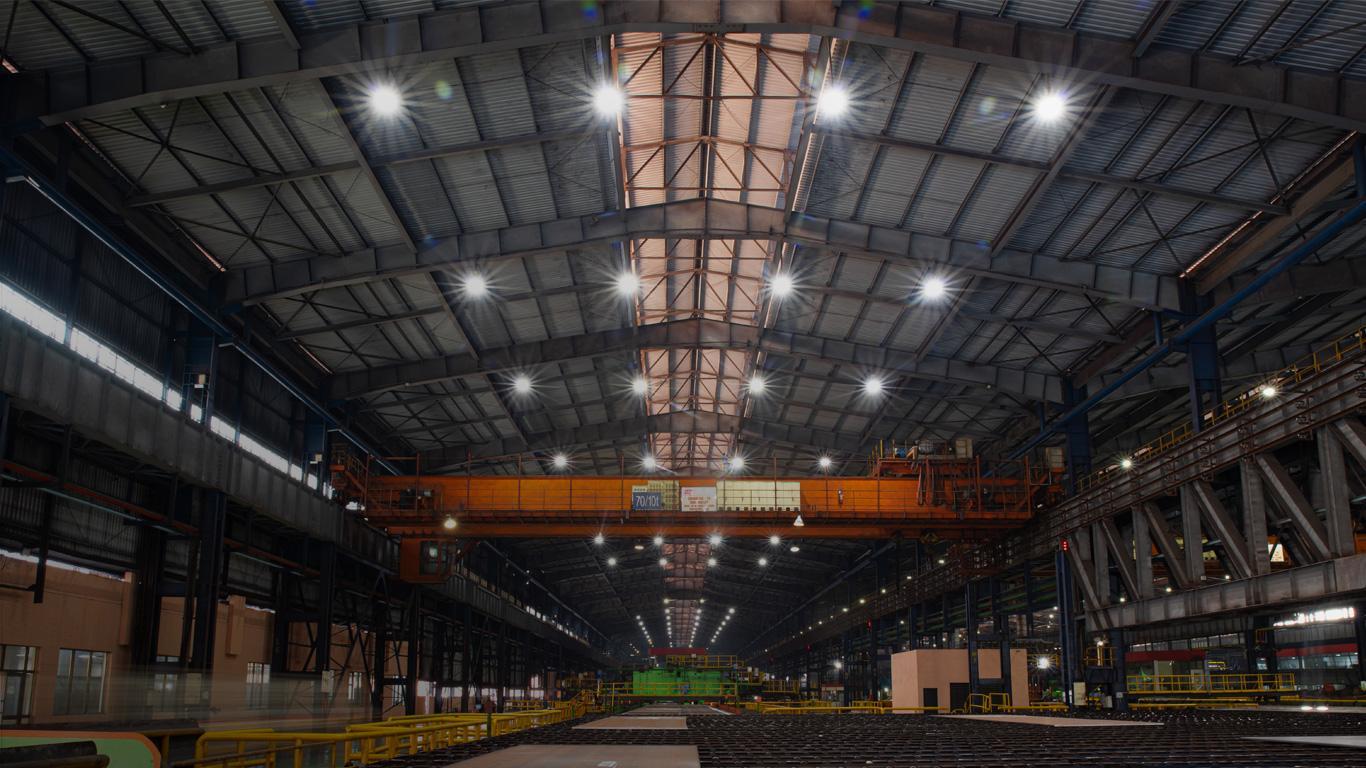

High-tech plate mill features with world class processes and ultra modern facilities
• 10,000 tonnes of roll separating force
• Thermo Mechanical Controlled Process with Accelerated Direct Cooling
• 4,000 tonnes of hot leveller capacity
• 100% online ultrasonic testing
• Furnace normalised, quenching and tempering furnaces
• width = 1100mm – 4900mm
• thickness = 6mm – 150mm

STATE OF THE ART TECHNOLOGY
EQUIPMENT	SUPPLIER
Rolling mill, ADCO facilities, roller tables, cooling beds, hot and cold levellers, including automation and control systems	Siemens VAI, France
Digital reheating furnace	Fives Stein, France
Heat treatment facilities covering austenitising and normalising, quenching and tempering furnaces	LOI Thermprocess, Germany
Auto UT testing	NDT, Germany
Shot blasting and painting	Wheelabrator, Germany
Leveler	Waldrich, Germany
