Pre-Painted Galvanised Profile Sheets

AM/NS UltraShine

Presenting, the first ever parkerized colour-coated profile sheets that adds brilliant colour to your residential, commercial and industrial building projects.

Send Enquiry

Download Brochure

Colour Coated Steel

Pre-Painted Galvanised Profile Sheets

Brilliant Colours that Last Forever

For Elegance and Resilience

Elevate your structures with AM/NS Ultrashine: high-strength, ultra-wide, colour-coated profile sheets, for cost-effective spanning of hangars, warehouses, factories, and residences, with high-speed wind resistance up to 180 kmph, and SST of 1200+ hours.

View Top Benefits

Features

High Impact Resistance

Superior Profile Design

Indian Weather Condition Tested

Wide Range of Colours

Advanced Paint Technology

Premium Packaging

Maximise Savings with Extended Lengths

Features

< Prev Next >

Applications

Elegance and Resilience Elegance and Resilience Elegance and Resilience Elegance and Resilience

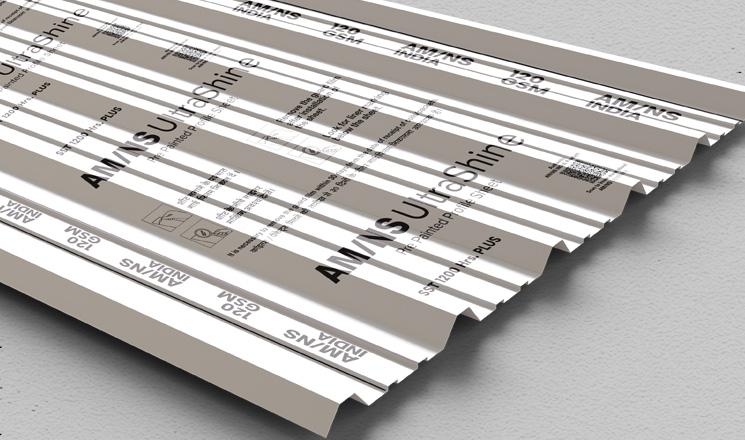

Specifications

Coating Specification

Verification and Tests

Paint Coat	32 - 35 Microns (4 coats)
Zinc Coating	120 GSM (Metal Coating 18 micron)
Normal Thickness	0.350 - 0.650 mm

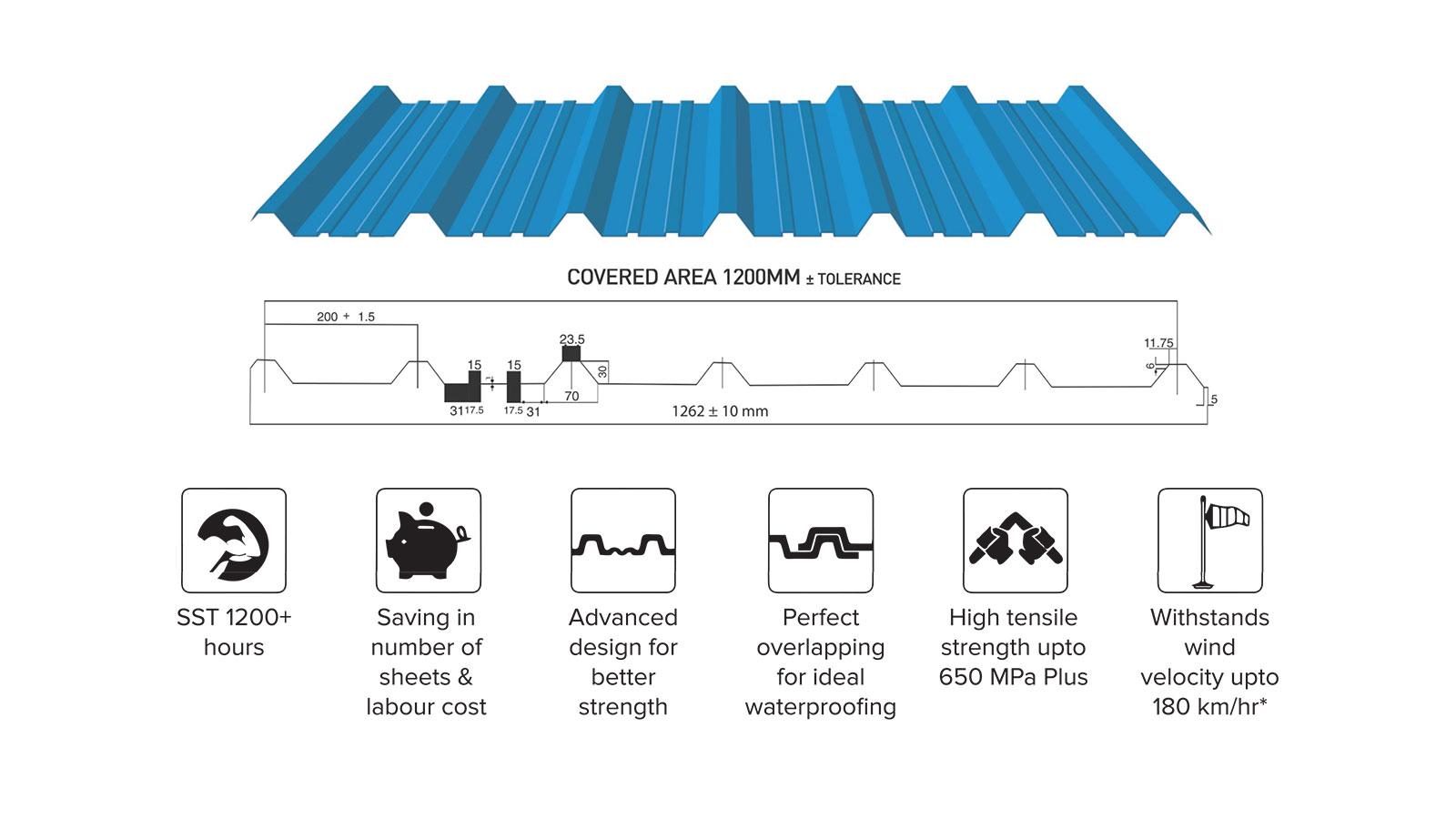

Output width	Up to 1262 mm (input 1440 mm)
Length	12 mtrs. Max. (40 feet)
Wind velocity	180 kmph
Yield Strength	650 Mpa minimum
Paint	RMP, SMP, SDP, PVDF
Surface Finishes	Glossy and Matte
ISI Logo	Along with CM/L 2918469
Warranty on SST	1200+ hours
Guard Film	51 microns

PARTICULARS	PAINT SYSTEM
Primers	Epoxy, Polyester
Topcoat	Polyester (RMP) Silicon Modified Polyester (SMP) Super Durable Polyester (SDP) Poly Vinyl Di Fluoride (PVDF)
Paint Type	Metallics, Plastisol, Acrylics
Colours	As per RAL shades
