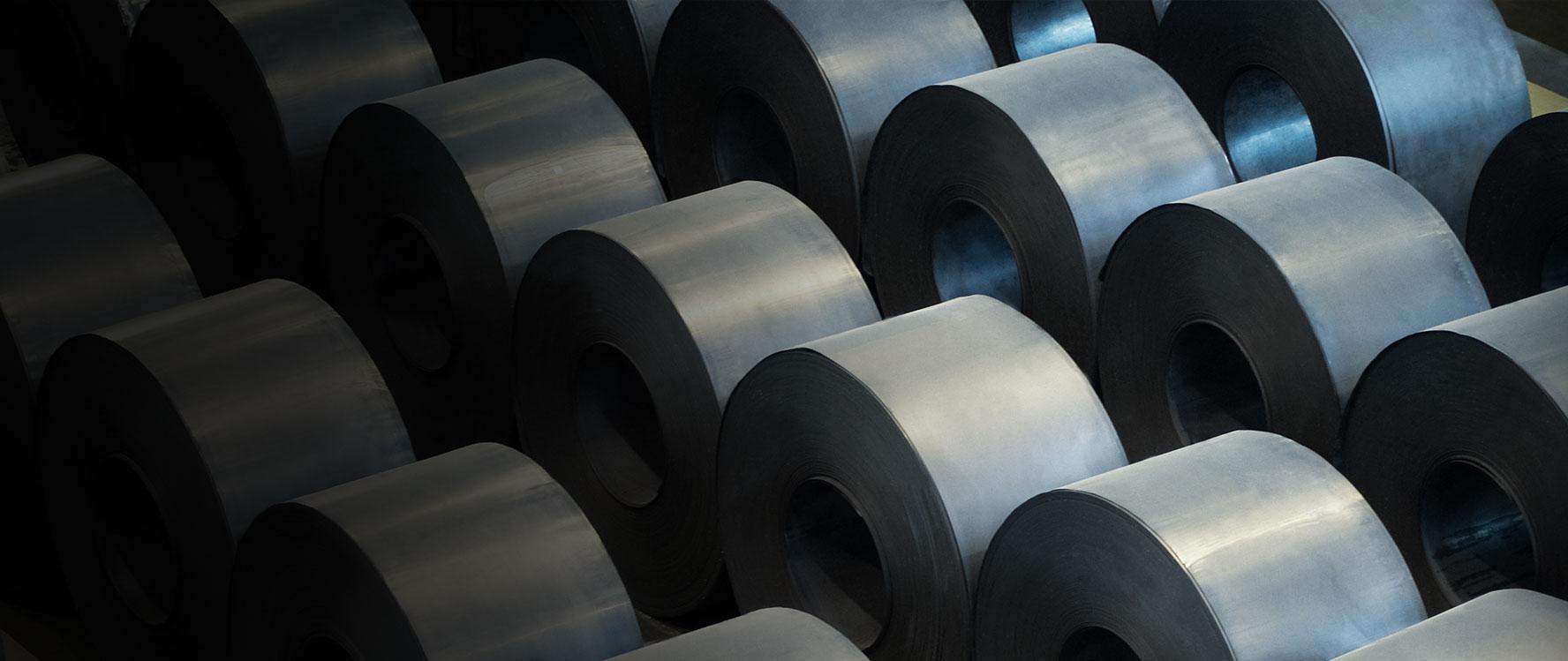

AM/NS Cold Rolled Steel

Creating The Future. Creating The World Of Steel.

Steel made with razor-sharp precision.

Our flagship manufacturing complex at Hazira commands a leading position in the cold rolling segment in India. With a capacity of 2 MTPA, it has a 6 Hi Hitachi mill and a tandem mill. Coils are rolled between 0.40 mm and 3.2 mm in width and range from 200 mm to 1,625 mm in length.

AM/NS Polar is our branded product for
cold-rolled steel for the retail channel.

Visit the AM/NS Polar Website

Features

High surface quality

Uniform mechanical properties

Consistent tolerance

Superior flatness

Features

< Prev Next >

Applications

Precise & Strong. Precise & Strong. Precise & Strong. Precise & Strong. Precise & Strong. Precise & Strong.

Product Applications

Cut to length / size Line capability

Sitting Line Capacity

Segment	Grades	General Application
CRFH	CRO	Packaging Straps
General Purpose	CRI, SPCC	Structural, Automotive Tubes, Draw components
Drawing / Deep Drawing/ Extra Deep Drawing Steel	CR2, CR3, CR4,DC03, DC04, SPCD, SPCE	Passenger Vehicle Inner Panels – Rear Floor, Center Floor, Doors, Tractor Panels
IF Steel	CR5, SPCEN, DC05	Passenger Vehicle Inner Panels – Hood, Deck Lid, Doors, Two wheelers Body Panels
Bake Hardening	BH180, BH195	Body Panels – Three wheelers & Light Commercial Vehicles
IFHS	SPFC340/390/440	Automotive Structural application
C-Mn Steel	SPRC440	BIW/Structural components
HSLA	HSLA 260/340/420	Automotive Tubes/ Structural Parts
Hot Forming	22MnB5, 20MnB5	Passenger Vehicle crashworthy parts– Bumpers, B-Pillar, Door Impact Beams
Corrosion resistant steel	Corten	Railway Coaches/Building Facades
Electrical	50-SP-500-E5	Electrical Stampings
	60-SP-500-E5
	65-SP-500-E5
	65-SP-600-E5
	65-SP-800-E5
	65-SP-1000-D5

Cut to length (CTL)/ Cut to size Line capability
Product Form	Pune	Bahadurgarh	Chennai
CRCA Sheet	252	150	150
Capacity (KT/Annum)	252	150	150
Thickness (mm)	0.5 - 3.2	0.5-3.2	0.5 - 3.2
Width (mm)	150-1600	150-1600	150-1600
Length (mm)	500-5000	500-5000	500-5000
Bundle Weight (MT) (Max)	5	5	5
YS (Max)	700 MPa	700 MPa	700 MPa
UTS (Max)	900 MPa*	900 MPa*	900 MPa*
* (For Max Thickness 1.4 mm)
Note: Pune steel service centre is equipped with a Trapezoidal Shearing facility for processing CRCA & Coated Products

Capacity (KT/Annum)	Thickness (mm)	Width (mm)	Length (mm)	Bundle Weight (MT)-Max	YS (Max)	UTS (Max)
96	0.5-2.00	500-1600	400-6000	5	700 MPa	900 Mpa

Slitting Line Capability
	Pune	Bahadurgarh	Chennai
Product Form	CRCA Coil form	CRCA Coil form	CRCA Coil form
Capacity (KT/Annum)	150	150	150
Thickness (mm)	0.5 - 3.2	0.5-3.2	0.5-3.2
Input Width (mm)	500-1600	500-1600	500-1600
Input Coil ID (mm)	508/610	508/610	508/610
Output Width (mm)	50-1600	50-1600	50-1600
Output Coil ID (mm)	508	508	508
Coil OD (mm)	800-2000	800-2000	800-2000
YS (Max)	700 MPa	700 MPa	700 MPa
UTS (Max)	900 MPa	900 MPa	900 MPa
